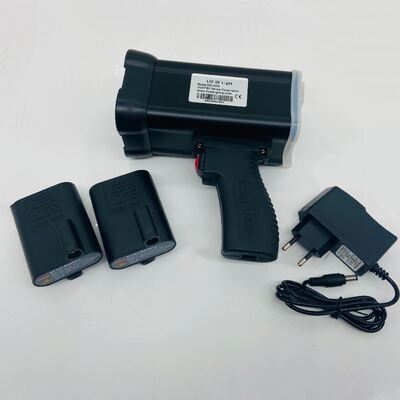

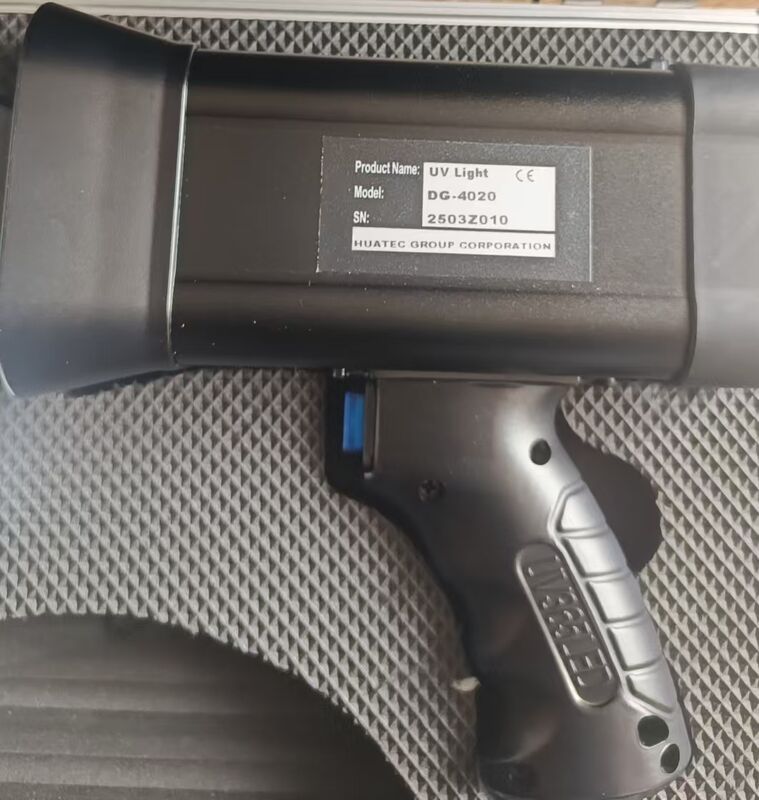

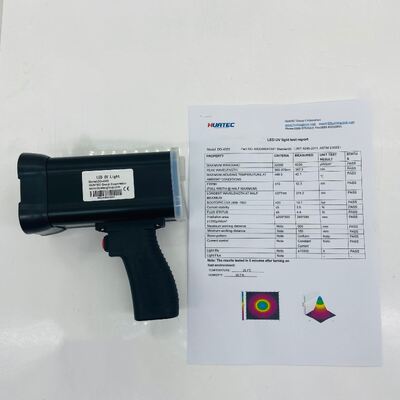

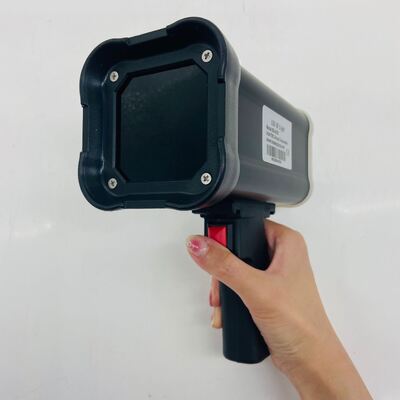

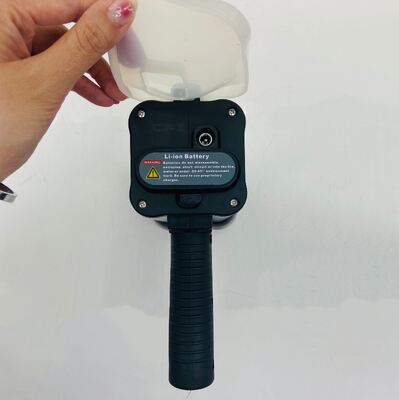

Dual AC Directly and DC Battery Operation Handheld LED-UV Lamp

Dual AC Directly and DC Battery Operation Handheld LED-UV Lamp
Dual AC Directly and DC Battery Operation Handheld LED-UV Lamp Dual AC Directly and DC Battery Operation Handheld LED-UV Lamp Dual AC Directly and DC Battery Operation Handheld LED-UV Lamp Dual AC Directly and DC Battery Operation Handheld LED-UV Lamp Dual AC Directly and DC Battery Operation Handheld LED-UV Lamp

Ampliación de imagen :  Dual AC Directly and DC Battery Operation Handheld LED-UV Lamp

Datos del producto:
Lugar de origen: Porcelana
Nombre de la marca: HUATEC
Certificación: ISO,CE
Número de modelo: DG-4020
Documento: DG-4020 Dual AC&DC operatio...mp.pdf
Pago y Envío Términos:
Cantidad de orden mínima: 1 unidad
Detalles de empaquetado: En caja de cartón
Tiempo de entrega: 5-8 días después del pago
Condiciones de pago: T/T, Western Union/Paypal, L/C, Western Union
Capacidad de la fuente: 100 unidades por mes

Dual AC Directly and DC Battery Operation Handheld LED-UV Lamp

descripción
Nombre: Lámpara UV LED de mano Solicitud: Luz ultravioleta para inspección de partículas magnéticas
Usar: Luz de detección de fugas UV Palabras clave: Lámpara UV LED de mano
Resaltar:

handheld LED-UV lamp for magnetic testing

,

dual AC DC battery UV lamp

,

portable LED-UV inspection light

Dual AC Directly and DC Battery Operation Handheld LED-UV Lamp


Main purpose
Fluorescent Magnetic Particle Inspection (MPI)
Fluorescent Penetrating Inspection (FPI)
Oil contamination, leakage, and fluorescent labeling inspection


Feature

● Strictly comply with ASTM E3022

● UV-B content is 0

● Battery life of 2-3 hours

● Quick Battery Replacement

● Only 560g of battery is included

● Temperature rise of external surface under continuous operation < 8K (8℃)

● It has colour filter glass, and the white light content is less than 20LUX

● Can work with AC directly and also with DC battery


DG-4020 Dual AC DC Operation Handheld LED UV Lamp parameter

Project Parameter / mode
Style Handheld

UV(Light)-FLUX

Indoor temperature 25℃

6000uW/cm2
White light content ≤3LUX

Irradiation area at depth of 380mm:

(≥1000uw/cm²)

Φ300mm
Flux error 0-40℃ ±10%
Light distribution characteristics Central light distribution
Power Supply AC100- 240V,50/60Hz
Power UV LED-12VA
Wavelength Room temperature 25℃, 365nm±3nm (UVA)
Overall dimension 157. 5mm (W) *76mm (D) *177mm (H)
Weight 560g including battery
Battery capacity 2200mA/H 12.6V
Charging time 2-3H
Battery life (cumulative time) UV LED 2-3H

Dimension: (mm)

Dual AC Directly and DC Battery Operation Handheld LED-UV Lamp 0

Dual AC Directly and DC Battery Operation Handheld LED-UV Lamp 1

Dual AC Directly and DC Battery Operation Handheld LED-UV Lamp 2
