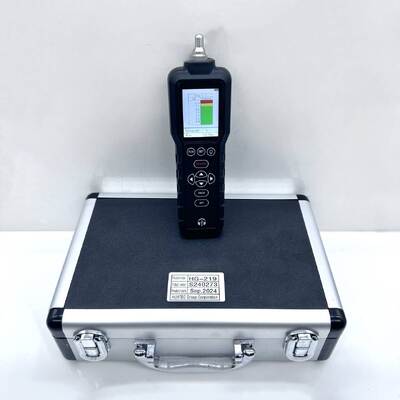

HG-219 Handheld Vibration Analyzer Bearing Fault Detector Data Collector with Electronic Stethoscope

HG-219 Handheld Vibration Analyzer Bearing Fault Detector Data Collector with Electronic Stethoscope

HG-218 is a multi-purpose, multi-functional industrial detector. Features: multi-parameter vibration value, temperature measurement, electronic assisted auscultation, frequency analysis, lighting in one. Automatic data retention, automatic storage, automatic shutdown, easy to operate. It is suitable for the rapid condition detection of bearings, gears and reciprocating machinery of rotating machinery and equipment in industry. The measured values conform to the intensity standard of rotating machinery. It is widely used in machinery manufacturing, electric power chemical industry and other fields.

Technical parameter index:

Measurement range, frequency response range and accuracy:

Acceleration ACC (unit: m/s2) : equivalent peak

Speed VEL (unit: mm/s) : true effective value

Displacement DISP (unit: mm) : equivalent peak-peak value

Envelope EVA (unit: m/s2) : true effective value

Temperature TEP (unit: ° C) : Measures the surface temperature of an object using infrared spectroscopy

Store 100 points (including 4 vibration values, one waveform)

Operating temperature: 0℃ ~ 50℃, relative humidity: <85%

Volume: 180 x 50x 25(mm)

Weight: 100 g (including rechargeable battery)

12 months for the whole machine; Non-human factor damage excepted.

Please bring the warranty card or certificate when the equipment is repaired or calibrated.

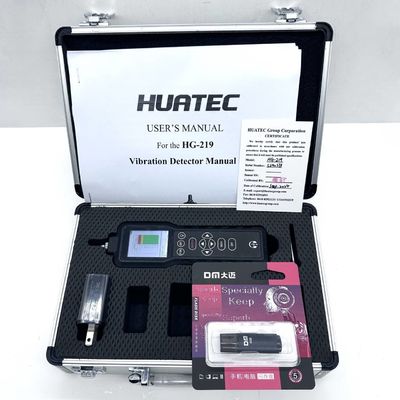

Standard configuration list
