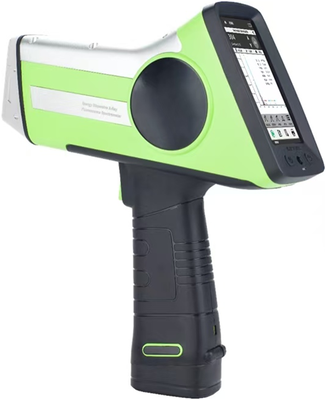

Handheld X-ray Fluorescence Analyzer with Peltier Effect Cooled Fast-SDD Detector, Resolution≤126eV and Ag Targets X-ray Source

Handheld X-ray Fluorescence Analyzer with Peltier Effect Cooled Fast-SDD Detector, Resolution≤126eV and Ag Targets X-ray Source
Handheld X-ray Fluorescence Analyzer with Peltier Effect Cooled Fast-SDD Detector, Resolution≤126eV and Ag Targets X-ray Source Handheld X-ray Fluorescence Analyzer with Peltier Effect Cooled Fast-SDD Detector, Resolution≤126eV and Ag Targets X-ray Source Handheld X-ray Fluorescence Analyzer with Peltier Effect Cooled Fast-SDD Detector, Resolution≤126eV and Ag Targets X-ray Source

Ampliación de imagen :  Handheld X-ray Fluorescence Analyzer with Peltier Effect Cooled Fast-SDD Detector, Resolution≤126eV and Ag Targets X-ray Source

Datos del producto:
Lugar de origen: Porcelana
Nombre de la marca: HUATEC
Certificación: ISO,CE
Número de modelo: HXRF-145AT
Documento: HXRF-145AT Element analyzer...or.pdf
Pago y Envío Términos:
Cantidad de orden mínima: 1 pieza
Detalles de empaquetado: En caja de cartón
Tiempo de entrega: 10~15 días laborables después del pago
Condiciones de pago: T/T, Paypal, L/C, Western Union
Capacidad de la fuente: 5pcs por mes
Contacto

Handheld X-ray Fluorescence Analyzer with Peltier Effect Cooled Fast-SDD Detector, Resolution≤126eV and Ag Targets X-ray Source

descripción
Resolución del detector: ≤126eV Rango de elementos: Magnesio a U
Voltado de rayos X: 6~50kV Corriente de rayos X: 0~200μA
Temperatura de funcionamiento: -10 ° C ~ 50 ° C Peso: 1,5 kg

Peltier Effect Cooled Fast-Super SDD Detector Handheld X-ray Fluorescence Element Analyzer Spectrometer

1. Main application areas of the product

1.1 Manufacturing industry

  • Composition analysis of alloy materials
  • Reliability Identification of Alloy Materials (PMI)
  • Analysis of precious metals (gold, silver, platinum, palladium, rhodium, iridium)
  • Measurement of Metal Coating Thickness
  • RoHS compliance testing

1.2 Mining

  • Exploration of mineral veins
  • Analysis of ore grade
  • Analysis of Rare Earth Composition
  • Soil heavy metal detection

1.3 Recycling of renewable resources

  • Catalyst precious metal detection
  • Rapid classification of metals
  • Valuationof Renewable Resource Trading

1.4 Environment protection

  • Soil heavy metal detection
  • Bottom sediment and sediment detection
  • Heavy metal detection in water
2．Main technical specifications and parameters
Usage environment Temperature: -10°C~50°C; Humidity: 0-95% (20°C); Altitude: less than 5000m
Size and weight Size:275mm×245mm ×82mm; Weight(Including battery):1.5Kg
Analysis object Solid, powder, liquid
Analysis Element Range From Mg to U,Detection content range:0.1ppm to 99.9% ,Depending on the type of object being tested, there are differences
Detector Peltier effect cooled Fast-SDD detector,Resolution≤126eV
X-ray source Ag targets, tube voltage: 6~50kV, tube current :0~200μA
Microcomputer system Industrial grade 4-core 1.8GHz processor; 2GB RAM, 40GB data storage, capable of storing approximately 400000 spectral data; Built-in 4.5 inch high-definition backlight touch integrated color display screen
Operating system Industrial grade Linux
USB interface Two USB ports, capable of connecting to U disk and PC
Wireless interface Built in WiFi and BT, can connect to NET or PC, Android phone, or Bluetooth printer
Remote control Equipped with WinGUI software and Android APP, it can be connected to a computer or phone for data synchronization and sharing with instruments
Sample camera Microcamera,Sample photos can be taken
Collimation, filtering, and calibration 2.6mm collimator, capable of detecting both large and small samples, 8-channel filter with a wider detection range, built-in calibration plate, program controlled automatic calibration, no need for external standard plates
Pressure compensation Built-in barometer and automatic pressure compensation correction
Analysis software NDT element analysis software can be configured with multiple analysis modes according to user needs: alloy analysis, ore analysis, catalyst detection, precious metal analysis, etc. Users can use their own samples to establish their own calibration curves. The software has a built-in alloy grade library of more than 500 types, and users can customize report content. The test results can be automatically displayed as ppm or%
Operating language English, customizable for multiple languages
Radiation Safety Equipped with password protection function,The head is equipped with a sensor that can automatically identify the sample, and X-ray excitation is automatically prohibited during aerial testing; Multi angle X-ray status warning; Work interface X-ray radiation <0.15 Μ Sv/h
Battery 6600mAh lithium battery with charged capacity display; The working time of a single battery is about 8 hours, hot swapping function, allowing for direct battery replacement without shutting down the machine; During operation, the battery level can be displayed synchronously on the handle and screen
Transportation Safety Comply with ISTA 3A packaging and transportation drop, vibration, and impact test standards,UN38.3
Environmental adaptability Comply with GB/T2423.1 and GB/T2423.2,IP54,CE
Package an attachment

1 packaging:Instrument specific protective box, foam buffer substrate

2 Product accessories:

Standard Accessories
Accessories Description Quantity
lithium battery 7.2V,6600mAh,with electric charge display,Hot swappable 1
Charging adapter 14V/4A 1
Charger Can charge 2 batteries simultaneously 1
USB cable Mini USB 1.5m 1
USB flash drive 32GB 1
Protective film ElemtrackAtom series product specific 10
Wristband 1
Optional Accessories
Folding bracket Aluminum alloy, foldable 1
Radiation protection cover Used in conjunction with the bracket 1
Sample cup Used for powder or liquid samples 1
Handheld X-ray Fluorescence Analyzer with Peltier Effect Cooled Fast-SDD Detector, Resolution≤126eV and Ag Targets X-ray Source 0
