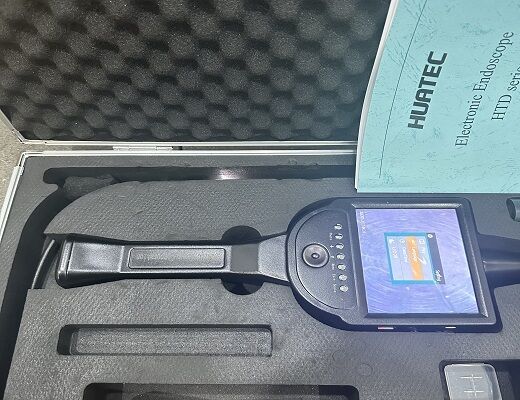

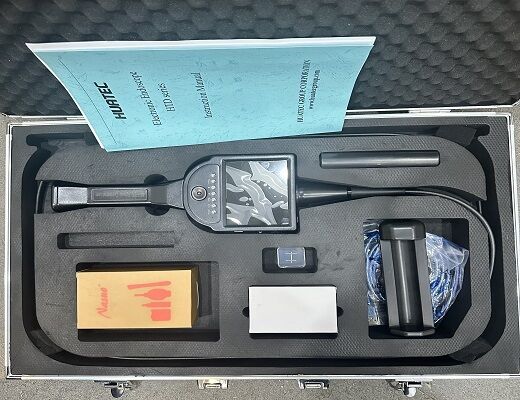

HTD-D6 High Brightness LED Lighting Industrial Electric Endoscope with probe diameter 6mm

HTD-D6 High Brightness LED Lighting Industrial Electric Endoscope with probe diameter 6mm
HTD-D6 High Brightness LED Lighting Industrial Electric Endoscope with probe diameter 6mm HTD-D6 High Brightness LED Lighting Industrial Electric Endoscope with probe diameter 6mm

Ampliación de imagen :  HTD-D6 High Brightness LED Lighting Industrial Electric Endoscope with probe diameter 6mm

Datos del producto:
Lugar de origen: Porcelana
Nombre de la marca: HUATEC
Certificación: CE
Número de modelo: HTD-D6
Pago y Envío Términos:
Cantidad de orden mínima: 1 pieza
Precio: USD3000/set - USD3400/set
Detalles de empaquetado: Caja de embalaje de cartón
Tiempo de entrega: 7-10 días hábiles después de recibir su pago
Condiciones de pago: T/T, Paypal
Capacidad de la fuente: 10 juegos/mes

HTD-D6 High Brightness LED Lighting Industrial Electric Endoscope with probe diameter 6mm

descripción
Diámetro de la sonda: Φ6mm Mostrar: Color verdadero TFT de 5''
Medio de almacenamiento: Tarjeta SD 8G Ángulo de flexión de la sonda: ≥ 120°
Dirección de flexión de la sonda: 4 vías Resolución de adquisición de imágenes: > 720*625
Interfaz de salida: USB2.0, AV fuera.
Resaltar:

6mm industrial LED endoscope

,

high brightness electric endoscope

,

non-destructive testing endoscope probe

HTD-D6 High Brightness LED Lighting Industrial Electric Endoscope with probe diameter 6mm


HTD-D6 industrial endoscopes use electric keys to control the rotation of the speculum head in four directions, which is precise, flexible and labor-saving, and can realize the positioning of any point of the speculum head, so that your vision can follow your heart. The machine adopts an integrated design, easy to operate; all functions can be completed by one hand. High definition, sharp color, image without distortion, wide use environment, and can be taken pictures, videos and other ways to save the site of the original data, to provide a strong guarantee for inspection and maintenance. Widely used in automobile engine carbon testing, steel pipe, casting, container internal defect testing, aerospace, power, and industrial, police, civil and other fields.


Technical parameter:
Name HTD-D6 Industrial electronic endoscope
optical system direction of observation Direct vision
Focal length fixed
Field angle ≥70°
Depth of field 10mm-∞/20-150
Probe specification Probe diameter Φ6mm
Probe bending angle ≥120°
Probe bending direction 4 way
Working length 1.5m (customizable)
Camera control electric,key control
image capture and display Screen brightness 250cd/㎡
Image acquisition resolution >720*625
pixel 450000
display 5” TFT true color
System specification Light source High light LED
Storage medium 8G SD card
Storage JEPG,MPEG4
power Built in rechargeable battery
Output interface USB2.0, AV OUT .
language English
In-depth tube material Stainless steel
Operating mode handheld portable control









































Product features:

1. Integrated handheld design, weighing about 0.88kg, easy to carry.

2. User-friendly design, simple and clear operating system.

3. The voyeuristic head is controlled in four directions by electric buttons, and any point can be positioned, and the micro-movement can be adjusted precisely, allowing you to observe as you wish.

4. Multi-layer stainless steel/tungsten wire mesh is adopted in the deep tube, which is more anti-corrosion and wear-resistant.

5. Adopt 5-inch hd display screen.

6. High brightness LED lighting, multi-level adjustable brightness.

7. Multi-functional image processing system, which integrates photo taking, video recording, browsing and return visit, and can be connected with the computer via USB.

8. 8GB memory, super-large capacity lithium battery, sustainable 3-4h, ultra-low power consumption.

9. Can be customized, upgraded infrared, wireless peeping head control.

HTD-D6 High Brightness LED Lighting Industrial Electric Endoscope with probe diameter 6mm 0

HTD-D6 High Brightness LED Lighting Industrial Electric Endoscope with probe diameter 6mm 1

HTD-D6 High Brightness LED Lighting Industrial Electric Endoscope with probe diameter 6mm 2
