HEC-103B High Precision Digital Conductivity & Resistivity Meter for Aerospace Aviation

Products of this series are the first generation of Digital Conductivity Meter designed with eddy phase. These products may be used for distinguishing, grading, and state detecting for non-ferromagnetic metal. These are commonly used in industries of machinery, electric power, aviation, aerospace, nuke, military, etc.

1.APPLICATION FIELDS

• non-ferromagnetic material
• Determining extent of thermal treatment
• Checking thermal damage, material fatigue and crack
• Determining metal purity
• Monitoring of metal homogeneity
• Metal classification Monitoring of strength and hardness Detecting the density of powder metallurgy parts

2.TECHNICAL PARAMETER

3.CHARACTERISTICS

• Beautiful appearance, easy to carry about and grasp, simple and convenient to use.
• Big screen, big character; displaying measured result, working frequency, temperature, temperature coefficient etc. simultaneously.
• Two kinds of switchable frequencies for HEC-103B, 60KHz for aviation industry standard, 500KHz for detecting sheet metal.
• Special temperature coefficient setting and auto calibrating mode, convenient and reliable for user to operate.
• Up to 500μm lift-off compensation design, for maintaining the measuring accuracy when painted, coated or dusty on surface.
• The variety of temperature compensation mode design, combined with temperature coefficient, instruments can ensure the measurement accuracy under different testing temperature.
• With interchangeable probes, the user is able to change probes provided by our company without matching.
• Built-in date memory, can record 4000 sets of test date and important test parameters, you can connect the computer to generate a complete report.
• Two units (MS/m or %IACS) convenient choice, but also can directly switch resistivity in the measurement of interface.
• Two kinds of language selection: Japanese and English.

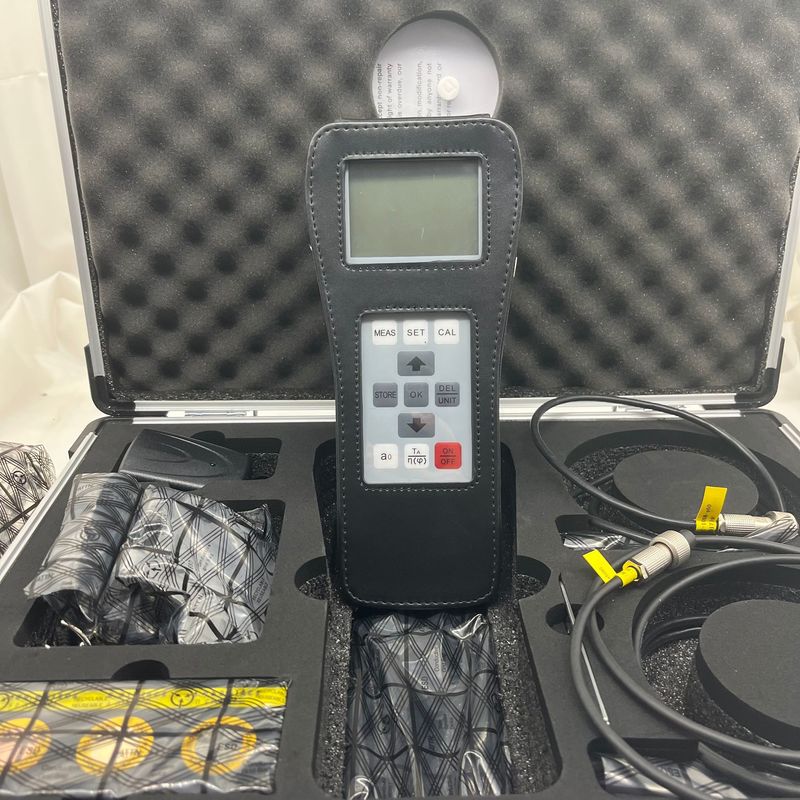

Standard accessories:

Main unit 1pc, communication cable, operation manual, calibration certificate, recharger, instrument stand, U- disk (or optical disk), High impact-resistance, portable box made of aluminum alloy, 3 pieces of standard conductivity blocks, leather protective case

Probe diameter 14 mm working frequency of 60 KHz and probe diameter 8mm working frequency of 500 KHz

Optional accessories:

Conductivity blocks
