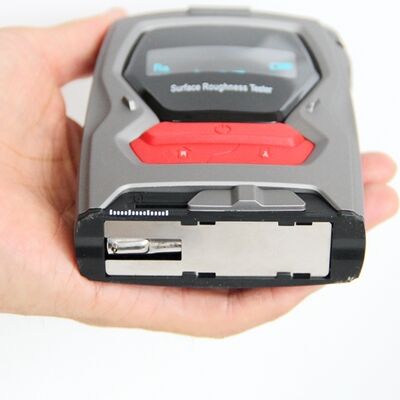

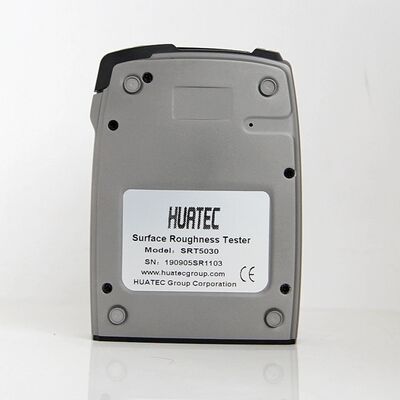

Dual Oled Handheld Surface Roughness Tester Support Mobile App
Features

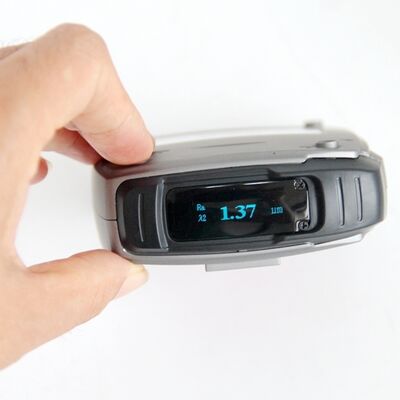

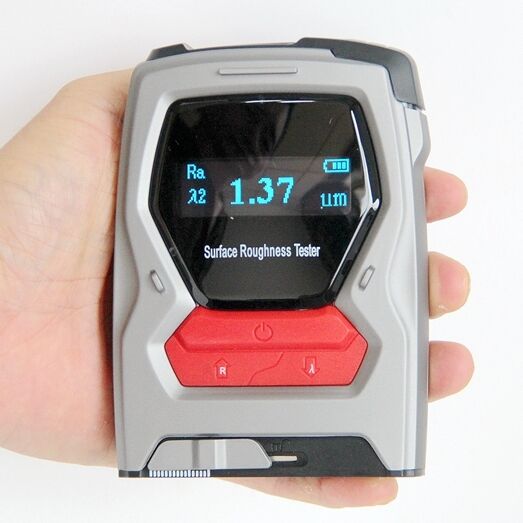

Dual OLED displays to suit your applications;
2 start keys ( the left key & the right key) to satisfy the different using habits;
Mobile app compatible to get the higher accuracy, convenient to be used in a small space
ARM processor to offer higher speed, low power consumption and fast accurate measurement.
Light weight of 150g, easy & convenient to use.
Main Technical Specifications
| Optional Parameter |
Ra, Rz, Rq, Rt |
| Measuring Range(μm) |
Ra, Rq: 0.05 ~ 10.0; Rz, Rt: 0.1 ~ 50 |
| Sampling Length(mm) |
0.25/ 0.80/ 2.5 |
| Evaluation Length(mm) |
1.25/ 4.0/ 5.0 |
| Running Length(mm) |
6 |
| Display Accuracy |
0.01μm |
| Display Deviation |
±(7-10)% |
| Display Repeatability |
＜12% |
| Stylus Radius |
10 μm±1 μm |
| Static Contact Force |
≤ 0.016N |
| Force Change Rate |
≤ 800N/m |
| Sensor Lead Pressure |
≤ 0.5N |
| Battery |
3.7V Lithium Rechargeable battery |
| Dimensions in mm |
110×81×32 |
| Weight |
150g |
Standard Delivery
| Main Unit |
1 pc |
| calibration block |
1pc |
| Power adapter |
1pc |
| USB cable |
1 pc |
| User Manual |
1 pc |
| Calibration certificate |
1 pc |
Optional accessories:
1.Standard Roughness Calibration Block Multi-engraved lines (Square Wave)
Made by optical glass, with high hardness, high accuracy standard roughness value, anti-scratch, has longer life than metal roughness block.
Meet standard GB/T19067.1-2003 and ISO5436-1:2000
Approximation: Ra=0.1um, 0.2um, 0.4um, 0.8um, 1.6um, 3.2um, 6.4um
Customized Value and Sine Wave available, welcome to inquire.
2.Standard Roughness Calibration Block Single engraved lines
Made by optical glass, with high hardness, high accuracy standard roughness value, anti-scratch, has longer life than metal roughness block.
Meet standard GB/T19067.1-2003 and ISO5436-1:2000
Approximation: Ra=0.1um, 0.2um, 0.4um, 0.8um, 1.6um, 3.2um, 6.4um)
Customized Value available, welcome to inquire.
3.Roughness Comparator (30 pcs/set)
This set contains standards of the six most important machining methods in the prevalent "AA" values. These surface roughness is used to compare and determine the degree of the surface finish by comparision method and eye estimation or magnifying glass.The surface rough contast blocks is made of 45 super carbor steel except the GCr15 which is using to plat lapping the sample block. All 30 speciments are calibrated in u''AA (Arithmetical Average) and in the metric equivalents um Ra.
4.Charge and Cable for Surface Roughness Tester
Charger: US and EU standard optional
Cable: USB interface
