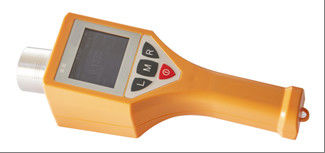

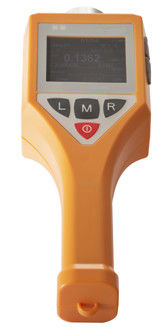

FJ32-3602 Multi-Function Waterproof Radiation Dosimeter for Environmental & Nuclear Monitoring

FJ32-3602 Multi-Function Waterproof Radiation Dosimeter for Environmental & Nuclear Monitoring

FJ32-3602 is an all-in-one digital multi-function radiation survey instrument, which can meet 10 range levels. It can precisely measure X, gamma and neutron rays, and carry out energy spectrum analysis of gamma rays. At the same time, it is waterproof and dustproof and can work in bad environment. IDefender has a wide range of USES, such as environmental monitoring, nuclear safety, radiation health surveillance (CDC), nuclear medicine, homeland security monitoring () the entry and exit, customs, public security monitoring (public security), nuclear power plant, laboratory, and nuclear technology application situation, at the same time can also be applied to renewable resources industry scrap metal of radioactive detection.

Typical configuration technical parameters:

Main detector (3602 detector) : scintillator detector +PMT; Sub-detector: GM tube

Detector size: NaI (TI) 1.2"×1.2";

Sensitivity: ≥400cps/ musv /h (cs-137)

Energy response: 20KeV~3.0MeV

Main detector dose rate range: 1nSv/h~ 600mu Sv/h;

Sub-detector dose rate range: 0.1um Sv/h~150mSv/h;

Cumulative dose range: 1nSv~999999mSv

Relative inherent error: ≤10%

Repeatability: less than or equal to ±5%

Detection frequency: continuously adjustable from 1 second

Alarm threshold: continuously adjustable from 0.25 ms /h

Alarm mode: sound, light, vibration

Battery life: 12 hours

Temperature range: -40℃~+55℃

Humidity range: 0~95% no condensation

Charger: 5V~1A

Size: 235 * 95 * 77 mm

Weight: 1200 g
