TG-M704 Magnetic Crawler C-scan Corrosion Thickness Measurement System with 0.04mm Accuracy and 2~120mm Range for Steel No Couplant Needed

The TG-M704 Magnetic Crawler C-scan Corrosion Thickness Measurement System enables rapid detection of high-altitude wall thickness corrosion through remote control. This innovative system eliminates the need for scaffolding, surface polishing of anti-corrosion layers, and couplant application.

• Uses rare-earth high-strength permanent magnet wheels for secure attachment - will not fall even during power failure
• Performs horizontal, vertical, and inverted multi-attitude motions on ferromagnetic components
• Equipped with electromagnetic ultrasonic thickness measurement probe for rapid corrosion screening and localization
• Intensive and accurate scanning of suspected corrosion areas quantifies wall corrosion
• Standard A, B, and C scan displays for comprehensive thickness analysis
• Integrated video camera for real-time inspection surface monitoring
• Remote control operation with preset scanning tracks for automated scanning

• Integrated front-view and rear-view dual cameras for real-time monitoring and trajectory control
• Strong magnetic suction with heavy load capacity (up to 16kg vertical upward movement load)
• Multiple movement postures: vertical, horizontal, inclined, and inverted operation
• High motion precision with four-motor four-wheel drive and millimeter-level programmed step detection
• Compact design with small turning radius for easy maneuverability
• Motion oriented guidance with macro video surveillance
• Distance positioning (error ≤30mm) with optional defect marking
• Professional scanning clamping mechanism ensures travel stability and probe coupling
• High electrical safety with special cables, explosion-proof plugs, and leakage protection
• Sealed protective box for EAMT and circuit modules

• Host: CPU ≥ i5/4GHz quad-core, 10.6" high-brightness HD display, 500G high-speed hard disk, IPX3 protection
• Control cable: 30m (customizable ≤50m)
• Motion paths: linear, zigzag, and bow type scanning patterns
• Longitudinal movement: stepping speed 5~200mm/s, barrier crossing ability ≤4mm
• C-scan bracket: 300mm total travel (customizable), speed 0-80mm/s
• Minimum surface curvature radius: ≥0.75m (no residual height), ≥1.5m (with weld seams)

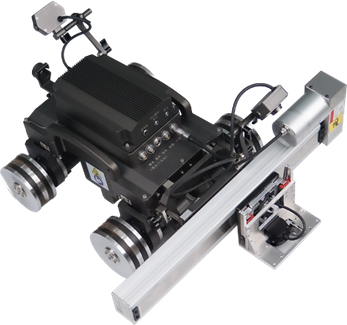

• Crawler body: 350×330×230mm, 17kg weight, passes through Φ450mm holes
• Controller: 220×145×60mm, 3.5" touch display, 0.4kg weight
• Video: dual cameras, 3 million pixels/2304×1296 resolution
• Power: AC100~240V, 50/60Hz, ≤200VA consumption
• Operating conditions: -10℃~+50℃, Humidity ≤85% R.H.

• No surface polishing required - penetrates anti-corrosion coating and rust without couplant
• Thickness measurement through surface coatings up to 4mm thick
• Measurement non-perpendicularity up to ±25° for flexible probe placement
• Multiple display formats: digital values, A-scan, time-based B-scan, and distance-based B-scan
• Expert intelligent algorithm with three thickness measurement modes
• Built-in material shear wave speed database with customizable values

• Thickness measurement accuracy: 0.04mm
• Measurement range: 2~120mm (Steel)
• Work clearance/lift-off: ≤4mm
• Non-perpendicularity: ±25°
• Sound speed range: 1000~9999 m/s, adjustment increment 1 m/s
• Gate function: automatic gate, manual single gate, manual double gate
• Electromagnetic ultrasound probe: magnetic suction ≤15N, Φ30×44mm, weight ≤80g
• Working temperature: -10~+50℃

• Simultaneous display of thickness, A, B, and C scan results
• Direct test record generation with thickness value lists for data analysis
• Compatible with  (32/64 bit) operating systems
